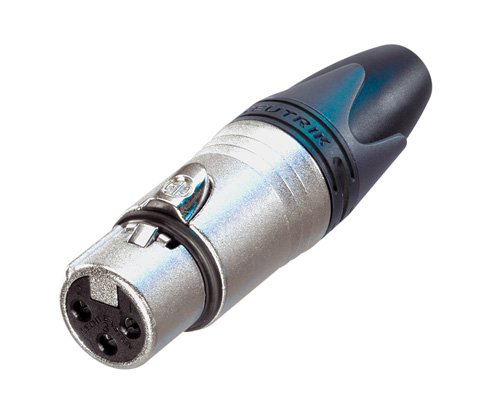

Neutrik NC3FXX
by Neutrik
Original price
EGP 315.00
-
Original price
EGP 315.00
Original price
EGP 315.00
EGP 315.00
-
EGP 315.00
Current price
EGP 315.00
Availability:
in stock, ready to be shipped
3 pole female cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Locking device Latch lock
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
